doseBadge Intrinsically Safe Noise Dosimeter

Intrinsically Safe doseBadge
Intrinsically Safe doseBadge

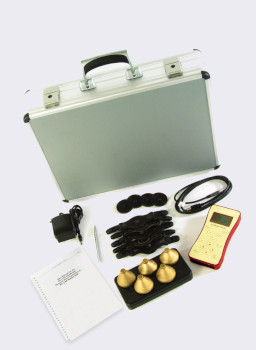

Intrinsically Safe doseBadge doseBadge Charger Typical Kit Contents

Features

  • Intrinsically safe noise dosimeter
  • Strong metal case
  • Shoulder mounted
  • Measures noise exposure

Applications

  • Occupational noise surveys
  • Hazardous and potentially explosive atmospheres
  • Petrochemical industry and mining
  • Noise dosimetry
  • Hearing protection

More Options

CK110AIS/1
$2623.00
Kit with one I.S. doseBadge, Charger, Software, Case
In stock

CK110AIS/2
$3638.00
Kit with two I.S. doseBadges, Charger, Software, Case
In stock

CK110AIS/3
$4653.00
Kit with three I.S. doseBadges, Charger, Software, Case
In stock

CK110AIS/5
$6683.00
Kit with five I.S. doseBadges, Charger, Software, Case
In stock

CK110AIS/10
$11759.00
Kit with ten I.S. doseBadges, Charger, Software, Case
In stock
CK112AIS/1
$2623.00
Kit with one MSHA doseBadge, Charger, Software, Case
In stock

CK112AIS/2
$3638.00
Kit with two MSHA doseBadges, Charger, Software, Case
In stock

CK112AIS/3
$4653.00
Kit with three MSHA doseBadges, Charger, Software, Case
In stock

CK112AIS/5
$6683.00
Kit with five MSHA doseBadges, Charger, Software, Case
In stock

CK112AIS/10
$11759.00
Kit with ten MSHA doseBadges, Charger, Software, Case
In stock
CR110AIS
$1107.00
Individual Intrinsically Safe doseBadge
In stock

CR112AIS
$1107.00
Individual MSHA doseBadge
In stock

RC110A
$1948.00
doseBadge Reader and Calibrator
In stock

CU110A
$553.00

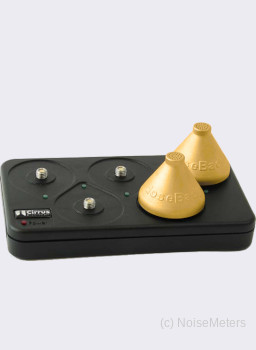

Charger for up to 5 doseBadges
In stock

UA110
$49.00
doseBadge Windshield
In stock

RC101A
$165.00
Keyfob Remote Control
In stock
CK110AIS/1
$2623.00
Kit with one I.S. doseBadge, Charger, Software, Case
In stock

CK110AIS/3
$4653.00
Kit with three I.S. doseBadges, Charger, Software, Case
In stock

Overview

The doseBadge noise dosimeter mounts on a worker's shoulder to measure and store the noise exposure throughout the working day or shift. The doseBadge contains a rechargeable battery, microphone and acoustic processor, all inside a strong metal case that clips on to the worker's clothing or overalls. It is well positioned to measure the noise levels close to the ear.

The doseBadges are controlled using a Reader (included in the CK110AIS/x kits). The Reader communicates with the doseBadge over an infra-red link, like a TV remote control. This means you can mount the doseBadge on the worker and, once you have finished fitting it, start the actual measurement.

The Reader also includes a sound level calibrator to check the function of each doseBadge before use. This is a requirement of most occupational noise regulations.

Intrinsically Safe

dosebadge noise dosimeter

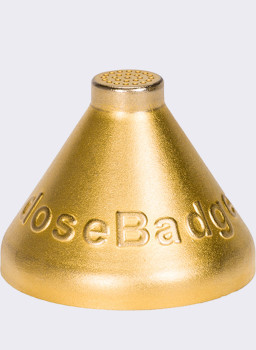

Shoulder Mounted Noise Dosimeter

The CR110AIS and CR112AIS versions of the doseBadge are approved for use in hazardous and potentially explosive atmospheres, making them ideal for the petrochemical industry and underground mining.

The I.S. version of the doseBadge makes all the same measurements as the standard doseBadge Industrial. It is coloured gold to clearly differentiate it from the standard non-approved version.

doseBadge Noise Dosimeter

The doseBadge intrinsically safe noise dosimeter is the part that mounts on the worker's shoulder. It is a small, lightweight device that should not interfere with the worker's duties.

dosebadge noise dosimeter
dosebadge mounting clips


The doseBadge is the only part of the system that is I.S. approved as this is the only part that needs to be present in the hazardous environment.

dosebadge mounted on worker


Weighing just 51g (1.8oz), the doseBadge has no cables or controls, making it safer around machinery and limiting the effects of tampering.

The dosimeter should be fitted to the worker at the start of the day or working shift and left to measure the total noise exposure.

Noise Measurements Made

The main noise measurements taken by the doseBadge depend on the settings and the regulations being followed.

  • TWA - time weighted average
  • Lep,d / LEX,8h - worker's daily noise exposure, used by EU based regulations
  • LAeq / Lavg - the A weighted average sound level
  • Peak - the maximum peak pressure
  • Time History - average every minute

To satisfy different regulations around the world, the doseBadge can use an exchange rate of 3dB, 4dB or 5dB. It has dual channels, with channel 1 configurable and channel 2 set to make ISO 3dB measurements.

Noise Dose Exceeded

noise dose level exceeded

The doseBadge can be set to indicate when the noise dose has exceeded 100% (e.g. 85 dBA for 8 hours). Under normal conditions, the blue LED flashes once every second. When the noise exposure limit is exceeded, it flashes twice every second.

Intrinsic Safety Approvals

These approvals apply to the CR110AIS and CR112AIS versions of the doseBadge noise dosimeter, which are included in the CK110AIS/x and CK112AIS/x noise dose kits.

Intrinsic Safety Certification

The Intrinsically Safe versions of the doseBadge have been independently tested and verified by a number of different test laboratories to ensure that it meets the requirements of the different Intrinsic Safety standards.

These tests ensure that under defined test conditions the doseBadge will not cause a spark or will not heat up and cause a flammable atmosphere to ignite. Within these standards there are many different levels of performance and it is essential that you have the correct level of performance for the environment in which your equipment will be used.

Limitations of the Intrinsic Safety Approval

Only the doseBadge itself (the shoulder mounted part) and its mounting are approved for use in potentially explosive atmospheres. None of the additional items, such as the Reader and Charger are approved. All tasks such as charging, calibrating and initializing the doseBadge should be done outside the hazardous area.

CR110AIS Intrinsically Safe doseBadge

The CR110AIS has ATEX, EEx, IECEx and FM approval for use in Group I non-mining and Group II mining applications.

Group I Non-Mining Applications:

  • ATEX: CE Ex II 1 G
  • IECEx: IECEx BAS 06.0084, Ex ia IIC T4 (-20°C <= Ta <= +60°C)
  • EEx: EEx ia IIC T4 (-20°C <= Ta <= +60°C)
  • FM: IS / I / 1 / ABCD / T4 Ta <= 60°C; Type IP54, I / 0 / AEx ia / IIC / T4 Ta <= 60°C; Type IP54

Group II Mining Applications

  • ATEX: CE Ex I M1
  • IECEx: IECEx BAS 06.0083X, Ex ia I (-20°C <= Ta <= +60°C)
  • EEx: EEx ia I (-20°C <= Ta <= +60°C)

CR112AIS MSHA I.S. doseBadge

The CR112AIS version of the Intrinsically Safe doseBadge has MSHA approval for use in mining applications.

  • MSHA: Intrinsic Safety Approval (No. 18-A060027-0)

Start of the Working Day

  • Fit the doseBadge onto the Reader and press the Reset key to clear its memory
  • Calibrate the doseBadge by pressing the Cal key
  • Attach the doseBadge to the worker using the supplied fixing
  • Point the Reader at the doseBadge and press the Run key

Leave the doseBadge measuring for the full working shift...

End of the Working Day

  • Point the Reader at the doseBadge and press the Stop key
  • Remove the doseBadge from the worker and fit it onto the Reader
  • Press the Cal key if you want a second calibration
  • Press Read to transfer the results to the Reader
  • Put the doseBadge on to charge to be ready for another day's monitoring

The measurements can be viewed on the Reader's built in graphic screen or they can be transferred to a computer for storage, analysis and reporting. The Reader can download a number of doseBadges before the measurements are transferred to a computer, so it is only necessary to carry the Reader on site.

Using the Reader

calibrating the dosebadge
Calibrating the doseBadge
start and stop dosebadge noise dosimeter
Start and Stop Measurement

doseBadge Software

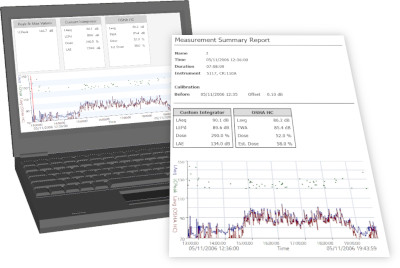

The doseBadge kits include the NoiseTools software, which is used to download the measurements from the Reader and produce noise reports.

  • Download, store and organise noise measurements
  • View measurements on screen
  • Produce reports then print or export them for sharing
  • Link measurements to people, places or projects
  • Backup and archive noise measurement data

The NoiseTools software runs on a Windows PC, supporting versions 7, 8 and 10. There are no licence restrictions so it can be installed on as many computers as needed.

doseBadge Dosimeter Kits

Although doseBadges and Readers can be bought individually, they are usually included in a complete noise measurement kit that includes everything you need to make occupational noise measurements.

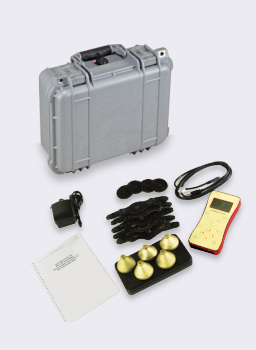

The CK110AIS/x kits include:

doseBadgesStandard kits include 1, 2, 3, 5 or 10 doseBadge dosimeters, but other quantities can be supplied
ReaderOne Reader unit is used with multiple doseBadges
CalibratorBuilt in to the Reader unit
doseBadge MountsOne mount for each doseBadge
ChargerFor charging the doseBadge batteries
SoftwareThe NoiseTools software
CertificatesCalibration certificates for each doseBadge and Reader (calibrator)

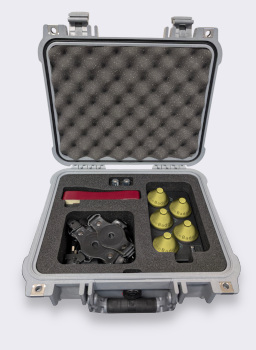

Carrying CaseHolds all doseBadges, Reader, charger and manuals

Optional Items

dosebadge windshield

Windshield The doseBadge windshield not only reduces the noise from strong wind but also provides additional protection against light rainfall, dust and the noise generated by knocks against the microphone.

Helmet Mount These allow the doseBadge to be fitted on the side of a helmet that is fitted with earmuff mounts. Three different types of mount are available to suit the most common helmets.

remote control keyfob

Keyfob Remote Control The Keyfob can be used instead of the Reader to Start and Stop the doseBadge. You still need a Reader to calibrate and reset the doseBadge but the Keyfob is much more handy for use in the field.
