The SoundEar 3 is a data logging Noise Warning Sign that can be mounted on a wall or other vertical surface using a single screw or hook. The trigger sound level is set using the software or buttons on the sign. The green, yellow and red lights can be set to warn people when the sound levels are getting high or already too high. The noise measurements can be downloaded to a Windows computer and reports generated using the SoundEar software that is included.
Rental Kit Includes

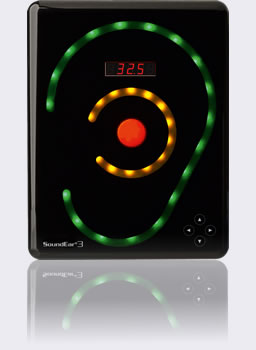

The SoundEar 3 has a dark gloss finish, making it ideal for use where appearance is important, such as entertainment venues, libraries, hospitals and schools. It mounts on the wall and lights up when the sound levels are too high. The "noise" can be from any source: loud music, machinery, talking, shouting.

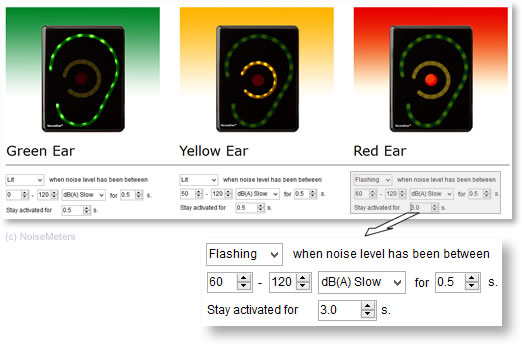

The sound level trigger levels can be set using the software. The lights can be set to light up or flash when the sound levels are high, and can have different settings for day or night. Basic adjustments can also be made using controls on the noise sign itself.
The SoundEar 3 is suitable for any indoor area where people need to be warned about high noise levels or reminded to keep the noise down.

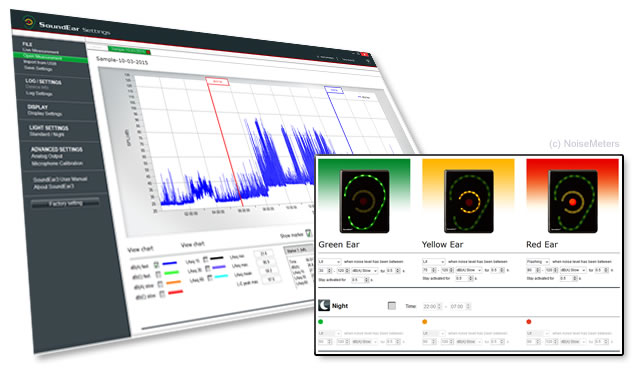

After download to the computer, noise charts can be produced clearly showing the changes in sound level over time.
1. Set the sound trigger levels (see below).
2. Hang the sign on a single screw on the wall.
3. Connect the power.
There are three ways to set up the trigger levels for the SoundEar 3 noise warning sign.
|Frequency Range||20Hz to 20kHz|
|Measuring Range||30 to 120 dB|
|Deviation||± 0.5 dB|
|Frequency Weighting||"A" ("C" weighted Peak)|
|Time Weighting||Fast and Slow|
|Digital Display||dB(A) Slow, LAeq15, Alarm settings, Clock|
|Outputs||"A" weighted, 0-10V or 4-20mA|
|USB Ports||1. Micro USB (power and PC connection)|
2. USB Controller (for USB memory stick connection)
|Internal Memory||16MB (128MBit) - 600 days depending on settings|
Easily extended using memory stick

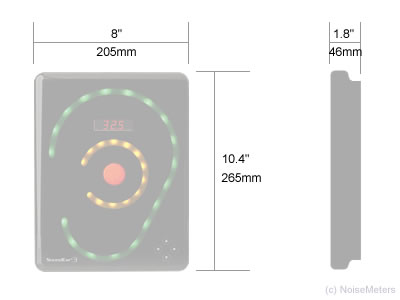

|Dimensions||265 x 205 x 46 mm, 10.4" x 8" x 1.8"|
|Weight||1.5 kg, 3.3 lb|
|Power||5 VDC (micro USB) or 24 VDC (screw terminal)|
|Acoustic Standards||IEC61672-2-2002 Class 2, ANSI S1.4 Type 2|
