Acoustic Calibrator - Class 2, 114 dB

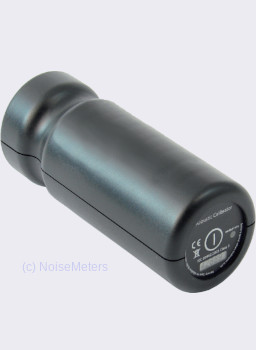

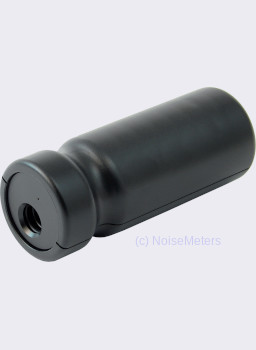

Class 2 Calibrator
Class 2 Calibrator

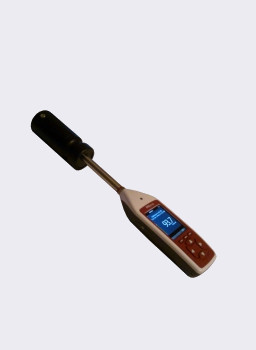

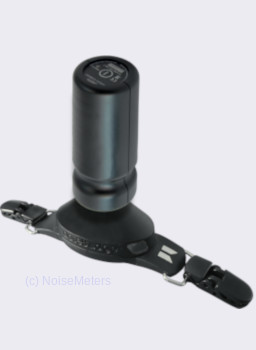

Class 2 Calibrator Class 2 Calibrator Calibrating a Noise Dosimeter Calibrating a Sound Meter
CR518
$483.00
Class 2 Calibrator, 114dB 1kHz, for ½" microphones
In stock

Features

  • IEC 60942:2003 Class 2
  • ANSI S1.40:2006 Class 2
  • Sound pressure level 114 dB
  • Frequency 1 kHz
  • Fits ½" microphones

Applications

  • Calibration of noise dosimeters
  • Calibration check of occupational noise meter
  • Field calibration checks
  • Required by many noise regulations

Overview

The CR518 Acoustic Calibrator meets ANSI S1.40:2006 and IEC 60942:2003 to Class 2. It is intended for use with noise dosimeters and occupational noise meters that may require the higher calibration level.

This calibrator is included with the doseBadge Professional range of noise dosimeter kits, along with the doseBadges, charger, carrying case and software.

Using It

As soon as the calibrator is switched on it emits a 1 kHz tone at 114 dB. The calibrator should be pushed carefully (firmly, but slowly) on to the microphone.

The meter should now be adjusted accordingly. There will often be a free-field adjustment to make for the microphone in use. So, for example, you may actually be adjusting to 113.8 dB on the meter. Meters like the doseBadge Pro make these adjustments automatically and deal with any corrections needed.

StandardsIEC 60942:2003 Class 2
ANSI S1.40:2006 Class 2
Sound Level114.0 dB ± 0.4 dB
Frequency1 kHz ± 1%
Distortion< 2%
Reference conditions23°C, 101.3 kPa, 65% RH
Microphone size½" (to IEC 1094-4)
Battery type1 x 9v (PP3, 6LR61, 6F22)
Dimensions121 x Ø47 mm
Weight220 g with battery
ControlsPush button start, Automatic switch off with green
LED indication. User override of automatic switch off
CE classificationEN 61000-6-3:2007+A1:2011
EN 61000-6-1:2007
