Acoustic Calibrator - Class 2

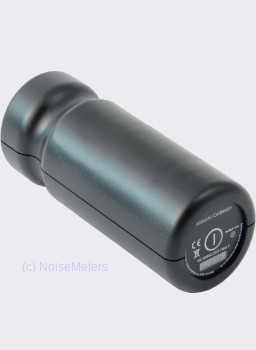

Class 2 Calibrator

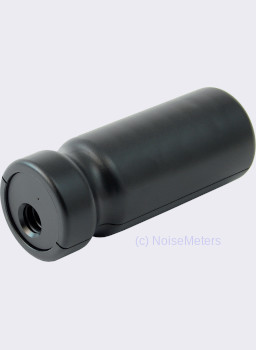

Class 2 Calibrator

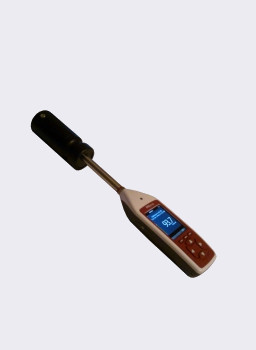

Class 2 Calibrator Class 2 Calibrator Calibrating a Sound Meter

Features

  • IEC 60942:2003 Class 2
  • ANSI S1.40:2006 Class 2
  • Sound pressure level 94 dB
  • Frequency 1 kHz
  • Fits ½" microphones
  • Adapter available for ¼" microphones

Applications

  • Calibration check of Class 2 sound level meter
  • Field calibration checks
  • Calibration of noise dosimeters
  • Required by many noise regulations
CR514
$483.00
Class 2 Calibrator, 94dB 1kHz, for ½" microphones
In stock

QD7
$60.00
Adapter for use with ¼" microphones
In stock

Overview

The CR514 Acoustic Calibrator meets ANSI S1.40:2006 and IEC 60942:2003 to Class 2. It is most suited to the Class 2 sound level meters that NoiseMeters offers.

This calibrator is included in most of the Class 2 Noise Measurement Kits, along with the sound level meter, carrying case and software where applicable. Please refer to the sound level meter web pages for more information.

Using It

As soon as the calibrator is switched on it emits a 1 kHz tone at 94 dB. The calibrator should be pushed carefully (firmly, but slowly) on to the microphone capsule.

The meter should now be adjusted accordingly. There will often be a free-field adjustment to make for the microphone in use. So, for example, you may actually be adjusting to 93.8 dB on the meter. For meters provided by NoiseMeters this is either dealt with automatically by the meter, or is covered in the meter's User Manual.

StandardsIEC 60942:2003 Class 2
ANSI S1.40:2006 Class 2
Type ApprovalPTB-1.61-4028829
Sound Level94.0 dB ± 0.4 dB
Frequency1 kHz ± 1%
Distortion< 2%
Reference conditions23°C, 101.3 kPa, 65% RH
Microphone size½" (to IEC 1094-4)
Calibration adapterQD7 for use with 1/4" microphone capsules
Battery type1 x 9v (PP3, 6LR61, 6F22)
Dimensions121 x Ø47 mm
Weight220 g with battery
ControlsPush button start, Automatic switch off with green
LED indication. User override of automatic switch off
CE classificationEN 61000-6-3:2007+A1:2011
EN 61000-6-1:2007
